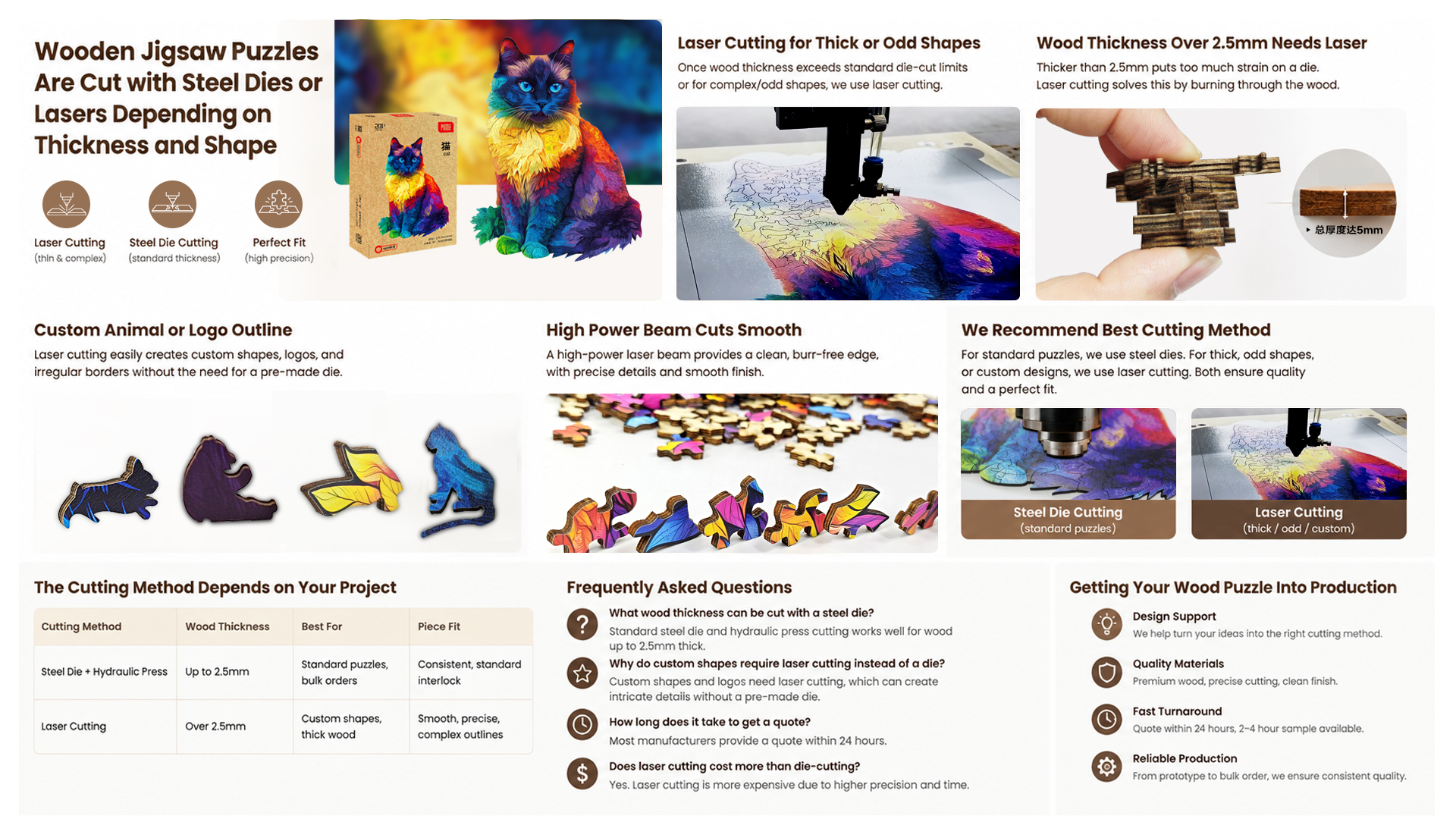

Wooden Jigsaw Puzzles Are Cut with Steel Dies or Lasers Depending on Thickness and Shape

Wood jigsaw puzzles are typically cut one of two ways: standard wood thickness (up to 2.5mm) uses the same steel die and hydraulic press process as paper puzzles, while thicker wood or custom shapes require laser cutting for smooth, precise edges. The right method depends on your wood thickness, design complexity, and order volume.

Wooden jigsaw puzzles have a certain appeal that cardboard just can't match. The weight in your hands, the visible grain, the satisfying snap of interlocking pieces—it's a different experience altogether. But have you ever wondered how manufacturers actually cut a solid sheet of wood into hundreds of oddly-shaped, perfectly interlocking pieces?

The answer depends largely on the wood itself. Thin, standard wood sheets get cut using the same die-cutting process as paper puzzles. Thicker or custom-shaped wood requires a completely different approach involving high-powered lasers. Understanding which method fits your project matters if you're planning to manufacture your own wood jigsaw puzzles, whether for a small hobby batch or a full production run.

This guide breaks down both cutting methods, when to use each one, and what to expect when working with a puzzle manufacturer.

We Cut Regular Wood With Steel Die

For wood puzzles at standard thicknesses, manufacturers use the same die-cutting method that's been the industry standard for paper puzzles for decades.

Same Die As Paper Puzzles

A jigsaw puzzle manufacturer doesn't need to reinvent the wheel every time they switch from cardboard to wood. If the wood is within a standard thickness range, the same steel cutting die used for paper puzzles works just fine. This die contains the interlocking piece pattern etched into hardened steel, ready to punch through the material in a single motion.

Hydraulic Press Cuts Wood Stack

The die is loaded into a hydraulic press, which applies significant force to punch the pattern through a stacked sheet of wood. Depending on the equipment, presses range from 300 tons up to 1,200 tons of pressure. Heavier tonnage handles thicker stacks and more complex die patterns in a single pass, making this method efficient for bulk production runs.

Interlocking Shape Standard Fit

Because the die is precision-engineered, every piece that comes out of the press has a consistent, standard interlocking fit. This matters for quality control: puzzle pieces from the same die connect securely without gaps or excessive looseness, batch after batch.

We Use Laser For Thick Or Odd Shape

Once wood thickness climbs past a certain point, or the design calls for something beyond a rectangular puzzle, die-cutting reaches its limits. That's where laser cutting takes over.

Wood Thickness Over 2.5mm Needs Laser

Wood thicker than 2.5mm puts too much strain on a standard die and press setup. The material simply doesn't punch cleanly at that thickness using conventional tooling. Laser cutting solves this problem by burning through the wood layer by layer, rather than relying on blunt-force pressure.

Custom Animal Or Logo Outline

Laser cutting also opens the door to shapes that a steel die can't easily produce, custom animal silhouettes, company logos, irregular borders, and other bespoke outlines. Since laser cutting doesn't require a pre-made die, manufacturers can adjust the design digitally and cut a new shape without the cost of tooling a new die from scratch. This makes laser cutting the go-to option for promotional puzzles, branded corporate gifts, or specialty pieces like the Rainbow Dog 210-Piece Laser Cut Wooden Jigsaw Puzzle, which uses 4.5mm laser-cut wood to achieve its detailed, character-shaped pieces.

High Power Beam Cuts Smooth

A high-power laser beam produces a clean, burr-free edge even through thicker wood. This is one of the reasons laser-cut wood puzzles feel so refined when handled: there's no sanding required, no rough edges catching on your fingers. The beam's precision also means intricate detail, like fur texture or fine line work in a design, translates accurately into the final cut.

We Recommend Best Cutting Method

Choosing between die-cutting and laser cutting isn't something you need to figure out alone. A reliable puzzle manufacturer will guide you through this decision based on your specific project.

Tell Us Shape And Thickness First

Before any recommendation can be made, a manufacturer needs two pieces of information: the wood thickness you're working with and whether the puzzle requires a standard shape or a custom outline. These two factors determine almost everything else about the production process, from tooling costs to lead times.

We Recommend Best Cutting Method

Once those details are in hand, an experienced manufacturer can recommend whether die-cutting or laser cutting makes more sense for your order. If you're producing a large batch of standard rectangular puzzles at 2mm thickness, die-cutting will likely be faster and more cost-effective. If you're after a custom logo shape at 4mm thickness for a limited run, laser cutting is the clear choice. Manufacturers with 26 years of puzzle production experience, like HEXIE Puzzle, have the equipment and know-how to advise on the right method for your piece count, material, and design complexity.

Free Quote Within 24 Hours

Once your shape and thickness are confirmed, most established manufacturers can turn around a quote quickly. A 24-hour turnaround for an initial quote is a reasonable expectation from a factory-direct puzzle producer, giving you enough information to move forward with sampling or production planning without long delays.

Getting Your Wood Puzzle Into Production

Making your own wood jigsaw puzzle isn't about choosing a fancy design and hoping for the best. It comes down to understanding your material and matching it to the right cutting process. Standard-thickness wood keeps things simple and cost-effective with steel die and hydraulic press cutting. Thicker wood or custom shapes call for laser cutting to achieve clean, precise results.

If you're ready to move forward with a custom wood jigsaw puzzle, whether it's a themed gift item, a promotional piece, or a full product line, reach out to a puzzle manufacturer with your shape and thickness details. From there, expect a fast quote, sample options, and a clear production timeline.

Frequently Asked Questions

What wood thickness can be cut with a steel die?
Standard steel die and hydraulic press cutting works well for wood up to 2.5mm thick. Beyond that thickness, laser cutting becomes the more reliable option.

Why do custom shapes require laser cutting instead of a die?
Custom shapes, like animal outlines or logos, would each require an expensive, individually tooled steel die. Laser cutting works from a digital file instead, making one-off or small-batch custom shapes far more practical and affordable.

How long does it take to get a quote for a custom wood puzzle order?
Most established manufacturers provide a free quote within 24 hours of receiving your shape and thickness details.

Does laser cutting cost more than die-cutting?
It depends on order volume. Die-cutting is generally more economical for large, standard-shape runs since the die cost is spread across many units. Laser cutting has no tooling cost, making it more competitive for smaller runs or one-off custom shapes.

Can I order a sample before committing to a bulk wood puzzle order?
Yes. Most puzzle manufacturers offer sample production, typically within 3-5 working days, so you can check quality and fit before placing a larger order.
