From Blank Board to Finished Picture: A Complete DIY Guide to Making Jigsaw Puzzles

Making a jigsaw puzzle starts with preparing a sturdy base like Medium Density Fiberboard, then gluing and smoothing a printed image onto the surface before trimming the edges. Once the artwork is sealed and flat, a scroll saw cuts the piece shapes, following penciled lines and finishing with filed, smooth edges. The entire process, used by both hobbyists and professional puzzle making companies, typically takes a few hours from start to finish.

Few hobbies feel as satisfying as assembling a jigsaw puzzle piece by piece until the full picture clicks into place. But have you ever wondered what it takes to create one from scratch? Whether you're drawn to DIY projects as a weekend craft or you're curious about how a puzzle factory produces thousands of boxes a day, the fundamentals of jigsaw puzzle manufacturing remain surprisingly consistent.

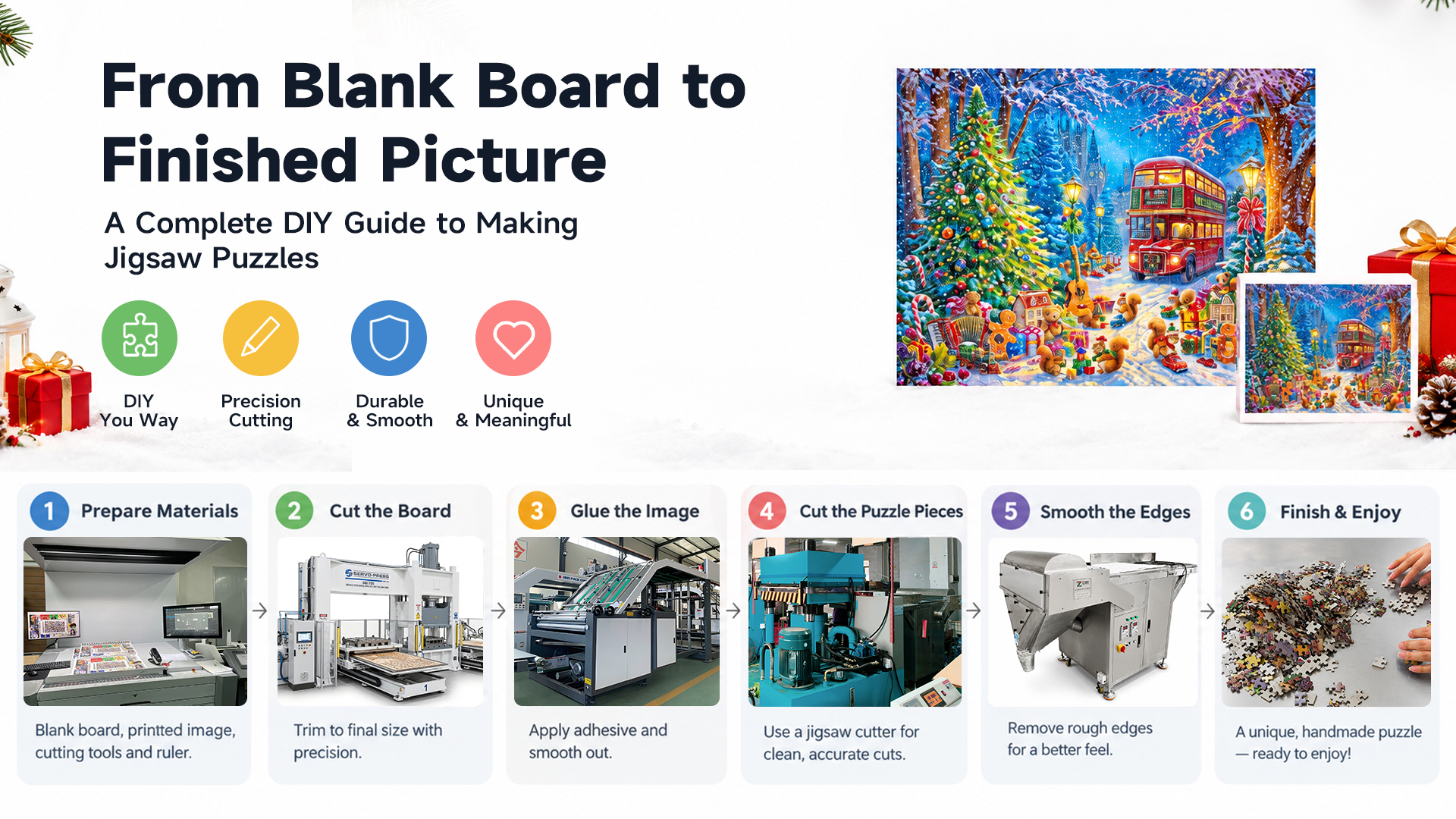

This guide walks through the three core stages of creating jigsaw puzzles at home: preparing your base material, transferring your artwork, and cutting the final pieces. Along the way, we'll touch on how commercial puzzle making companies scale these same steps using industrial machinery, and how you can apply professional techniques to your own DIY jigsaw puzzle project. By the end, you'll understand exactly what separates a flimsy homemade puzzle from one that holds together as well as something from a puzzle factory.

What Materials Do You Need to Choose and Prepare for a DIY Jigsaw Puzzle?

Every great puzzle starts with the right foundation. Skipping this step is the single biggest reason DIY jigsaw puzzles warp, crack, or fall apart during assembly.

Why Medium Density Fiberboard Sheet Is the Best Base Material

A Medium Density Fiberboard (MDF) sheet is the preferred base for most DIY puzzle makers, and for good reason. Unlike regular plywood, MDF has a smooth, consistent density throughout, which means your scroll saw blade won't catch on hidden knots or grain inconsistencies while cutting. This matters because grain inconsistency is one of the leading causes of jagged, uneven puzzle pieces.

Commercial puzzle making companies rely on a similar principle. Professional manufacturers like HeShan HeXie Toys use high-density eco-friendly chipboard, blue core board, and solid wood panels, chosen precisely because of their uniform density and resistance to warping (Hexiepuzzle.com). Choose MDF if durability and smooth cutting matter more to you than cost, since basic plywood is cheaper but more prone to splintering along the cut lines.

For a standard puzzle, a 1/8-inch to 1/4-inch thick MDF sheet works well. Thinner boards are easier to cut by hand but may feel flimsy once assembled, while thicker boards offer a sturdier final product at the cost of added cutting effort.

How to Sand the Surface Before Printing

Once you've selected your board, sand the surface before adding any artwork. Even MDF, despite being smooth compared to raw wood, can have a slightly porous texture that affects how well glue and paper adhere to it.

Use a fine-grit sandpaper (220-grit or higher) and sand in gentle, circular motions across the entire surface. This step does three things: it removes dust particles left over from manufacturing, smooths out any microscopic imperfections, and creates a slightly textured surface that helps adhesive bond more effectively. Skip this step, and you risk air bubbles forming underneath your printed image later on.

Wipe the board down with a dry microfiber cloth afterward to remove sanding dust. A clean surface is non-negotiable if you want crisp, bubble-free results in the next step.

How to Cut Plywood to Final Size

Before mounting any artwork, trim your board down to its final dimensions. Measure your intended puzzle size and mark it clearly in pencil, then use a table saw or a straightedge and utility knife for thinner MDF sheets.

Precision matters here more than people expect. An uneven edge at this stage compounds over the entire puzzle-making process, since you'll eventually need clean, straight sides for the printed artwork to align correctly. Double-check your measurements twice before cutting once, especially if you're planning a specific picture dimension that needs to match a printed poster or photo exactly.

How Do You Transfer Artwork Onto the Puzzle Board?

With your board cut, sanded, and ready, it's time to bring your picture to life. This stage is where most creating jigsaw puzzles projects either shine or fall apart, since a poorly mounted image will bubble, peel, or shift once cutting begins.

How to Glue the Printed Paper Surface

Print your chosen image on standard paper or photo paper, sized to match your board exactly. Apply a thin, even layer of adhesive, such as spray adhesive or a wood glue and water mixture, across the entire board surface rather than just the edges. An uneven glue application is one of the most common reasons DIY puzzles separate at the corners once dry.

Lay the printed image down from one edge to the other, rather than dropping it flat all at once. This controlled placement helps prevent trapped air bubbles from forming underneath the paper, which is a problem that becomes nearly impossible to fix after the glue sets.

Commercial puzzle factories solve this exact challenge with fully automatic laminating machines and paper mounting equipment that apply even pressure and consistent temperature control across the entire sheet (Hexiepuzzle.com). While you won't have industrial equipment at home, understanding why that consistency matters will help you apply glue more carefully by hand.

How to Smooth Bubbles With a Roller

Once your artwork is positioned, use a rubber brayer or roller to smooth the surface from the center outward. Work in firm, deliberate strokes, pushing air and excess glue toward the edges rather than trapping it in the middle.

This step directly affects the final quality of your puzzle. Trapped air bubbles create raised bumps that interfere with the scroll saw later, and they can cause the image to crack or peel along the puzzle's seams once the pieces are separated. Take your time here. Rushing the rolling process is a common mistake that's difficult to correct once the glue has fully cured.

How to Trim Overhang After Drying

Let the glued board dry completely, typically for 12 to 24 hours depending on humidity and adhesive type. Attempting to trim before the glue has set risks peeling the paper away from the board entirely.

Once dry, use a sharp utility knife or straightedge to trim any paper overhang flush with the board's edges. Work slowly and in multiple light passes rather than trying to cut through in one motion, which can tear the paper or gouge the board underneath.

How Do You Shape Puzzle Pieces With a Scroll Saw?

This is the stage that transforms a flat picture into an actual jigsaw puzzle. Cutting pieces is a skill that improves significantly with practice, so don't be discouraged if your first few attempts look slightly rough.

How to Drill a Starter Hole for the Blade

Unless you're cutting from the outer edge inward, you'll need a small starter hole to thread your scroll saw blade through the board. Use a thin drill bit, around 1/16 inch, to create a hole in an inconspicuous area of the design, ideally along a line you've already planned to cut.

This step matters because drilling in the wrong spot can leave a visible gap in your finished puzzle piece. Plan your starting point along a natural cut line so the hole disappears once the piece is separated from its neighbors.

How to Follow Pencil Cut Lines

Before cutting, sketch your puzzle piece pattern in pencil directly on the back of the board. Classic puzzle shapes use interlocking curves and knobs, but as a beginner, simpler wavy lines or geometric shapes are easier to manage with a scroll saw.

Guide the board gently through the blade, following your lines at a slow, steady pace. Scroll saw blades are thin and can wander off course if pushed too quickly, so let the saw do the work rather than forcing the board through. According to woodworking best practices, the blade should move through the material, not the other way around.

Commercial puzzle manufacturers achieve consistent piece shapes using laser cutting technology and precision hydraulic presses equipped with custom-designed dies, some capable of cutting accuracy within 0.05mm (Hexiepuzzle.com). While a home scroll saw can't match that level of exactness, following your pencil lines carefully gets you as close as possible.

How to File Rough Edges Smooth

After cutting, each piece will likely have small splinters or rough edges, especially along curved cuts. Use a fine-grit sanding block or nail file to gently smooth each edge, paying close attention to the interlocking "knobs" and "sockets" where pieces connect.

This step is often skipped, but it makes a noticeable difference in how smoothly your puzzle assembles later. Rough edges can catch on neighboring pieces, making the puzzle frustrating to put together rather than enjoyable.

DIY Puzzle Making vs. Professional Manufacturing: A Side-by-Side Comparison

Choose the DIY approach if you're making a one-off gift, a custom photo puzzle, or you simply enjoy the hands-on process. Choose a professional manufacturer if you need consistent quality across large quantities, specialized materials, or certifications for commercial sale.

Where Can You Turn If You Want a Custom Jigsaw Puzzle Without the DIY Work?

Not everyone has the time, tools, or patience for hand-cutting a puzzle from scratch, and that's completely reasonable. If you're a business, educator, or event planner looking for a customized jigsaw puzzle at scale, working with an established puzzle factory is often the more practical route.

Companies with decades of manufacturing experience bring precision equipment and quality control processes that are difficult to replicate at home. For example, manufacturers producing both standard and fully customized puzzles offer options ranging from corporate branded puzzles to personalized photo gifts, backed by certifications like ISO 9001 and FSC sourcing standards.

Whether you're experimenting with your first DIY jigsaw puzzle this weekend or sourcing a bulk order for a corporate event, understanding the full manufacturing process, from board preparation to final piece-cutting, gives you a genuine appreciation for every piece that clicks into place.

Frequently Asked Questions

What's the best material for a homemade jigsaw puzzle?

Medium Density Fiberboard (MDF) is generally considered the best choice for DIY jigsaw puzzles because of its uniform density, which prevents the splintering and warping common with standard plywood.

How long does it take to make a jigsaw puzzle at home?

Factoring in drying time for the glued artwork (12 to 24 hours), plus cutting and finishing, a DIY jigsaw puzzle typically takes one to two days from start to finish, though active work time is usually just a few hours.

Can I use a regular saw instead of a scroll saw?

A scroll saw is strongly recommended over other saw types because its thin blade allows for the tight curves and interlocking shapes characteristic of jigsaw puzzle pieces. Standard saws lack the maneuverability needed for this level of detail.

How do professional puzzle making companies achieve such precise piece shapes?

Professional manufacturers use laser cutting dies and hydraulic presses, some achieving cutting accuracy within 0.05mm, allowing for consistent interlocking shapes across thousands of units per production run.

Is it cheaper to make a jigsaw puzzle myself or order a custom one?

For a single puzzle, DIY is typically more budget-friendly if you already own basic tools like a scroll saw. However, for bulk orders, specialized materials, or professional finishes, working with a puzzle factory often becomes more cost-effective per unit.
